The script used for these three applets: tcp_slowstart0.tcl
Applet 5.3. RFC 793: too fast |
|
|---|---|
|
|
This animation file: gzipped only. Description:These two hosts are connected by means of a 1Mbit/s, 40ms delay link. Host 0 is using a window of 20 packets of 1000bytes. The transmission starts at t=0.1s and the pipe is full around t=0.2s. Here it looks good, but it is actually too fast. |
Applet 5.4. Linear Increase: too slow |
|
|---|---|
|
|

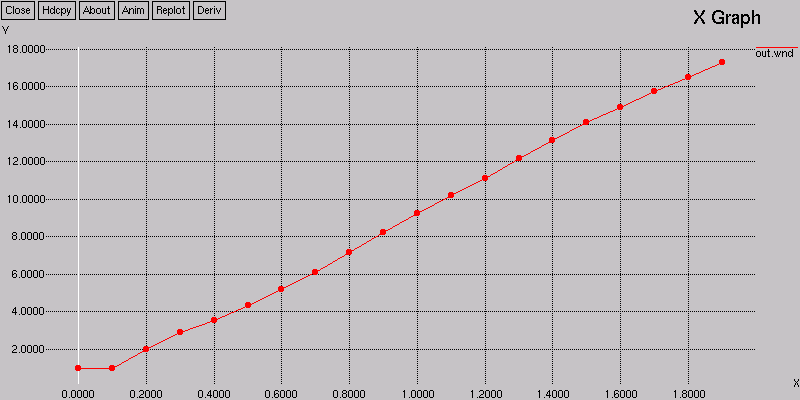

This animation file: gzipped only. Description:The same situation. This time we have decided that cwnd will increase linearly each time we receive a packet. Take a look to the evolution of the transmission window:
The transmission starts at t=0.1 and after one second the pipe is still not full!. This is definitely too slow. |
Applet 5.5. Exponential Increase: the point |
|
|---|---|
|
|
This animation file: gzipped only.

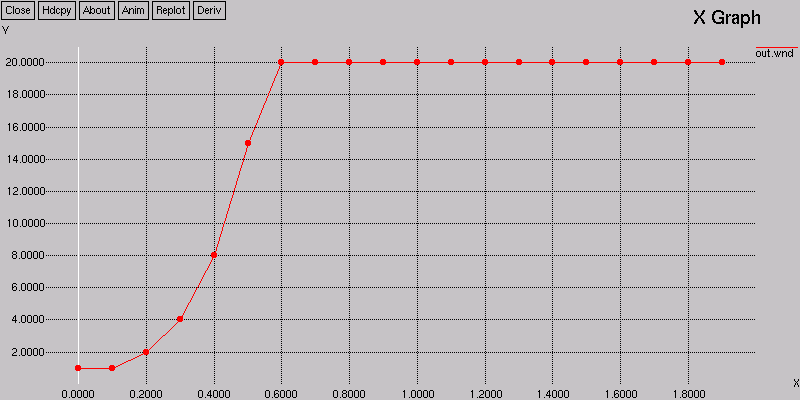

Description: The same situation again. This time we have decided that cwnd will be increased two packets for each received acknowledgenent. Take a look to the evolution of the transmission window this time:
The transmission starts at t=0.1 and the pipe is full around t=0.5. Not bad! |
